What is a Shut Off Valve?

If you are ever having an issue keeping control of fluids and gas in a system, shutting off the valve is your primary tool. This valve, which is operated primarily by a controller, is designed to either stop or regulate the flow of liquid via the pipes. If you are working with water, gases, or other substances, they offer you the chance to control the flow through the on and off button as needed.

They’re sort of like the masters of the pipelines you run in your house in an industrial setting, deciding when something goes in or comes out.

Shut Off the Valve Symbol

The valve symbol is one of the universal icons that is used in various sectors to signify valves that perform the function of stopping the flow of fluid in a pipe. It makes complex diagrams easier to understand and guarantees comprehension across professions.

Shut Off the Valve Symbol

Factors to Consider When Choosing Shut-Off Valves

Factors to Consider When Choosing Shut-Off Valves (2)
Factors to Consider When Choosing Shut-Off Valves

Material: Take into account the material compatibility of the valve with the liquid or gas the valve is going to handle. Materials such as brass, stainless steel, and PVC have varying degrees of corrosion resistance as well as durability, so they can be used in different applications.

Size: See that you pick the valve size that will fit your piping layout size and allow effective flow properties and pressure without causing blockages.

Pressure Rating. Choose valves with pressure ratings higher than the maximum pressure of your system to avoid leaks or valve failures.

Temperature Rating: Check whether the valve will work properly in the temperatures present in your system without being deformed or losing functionality.

Operating Mechanism: Select a valve that is equipped with an operating mechanism designed for your application needs, such as a handwheel, or motorized valve. This achieves a certain degree of efficiency and reduces any automation efforts’ difficulty factor.

Applications of Shut-off Valves

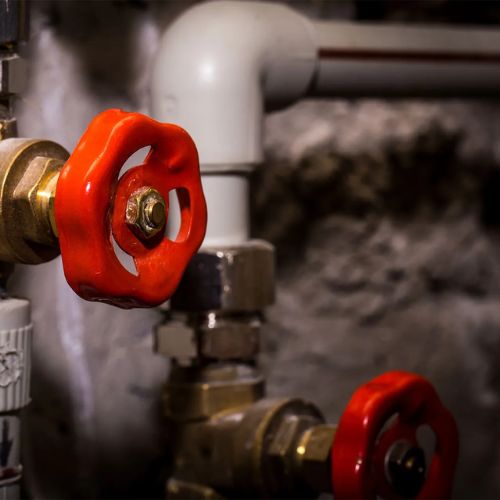

Residential Plumbing Systems
Residential Plumbing Systems

Control the flow of water to faucets, toilets, and appliances so as to do repairs and maintenance, thereby minimizing water waste.

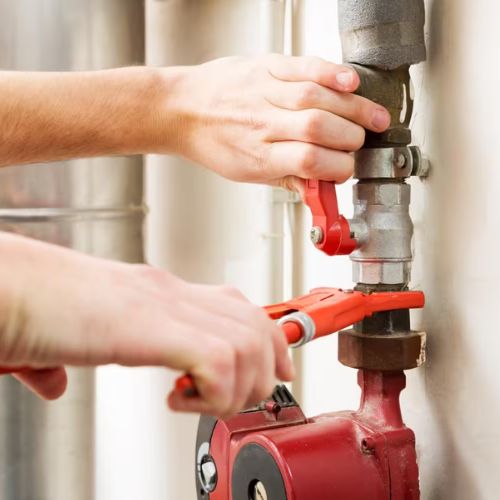

Industrial Processes
Industrial Processes

Incorporate fluid control in manufacturing processes, chemical processing, and power production so as to ensure safety and efficiency.

HVAC Systems
HVAC Systems

Control coolant and refrigerant flow in air conditioning, heating, and ventilation systems for temperature control and energy-saving purposes.

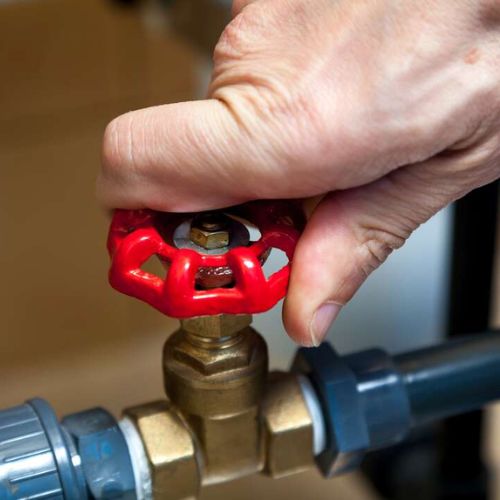

Natural Gas and Water Pipelines
Natural Gas and Water Pipelines

Safely control the direction and flows of gases and water in distribution systems, excluding bursts and ensuring a smooth supply.

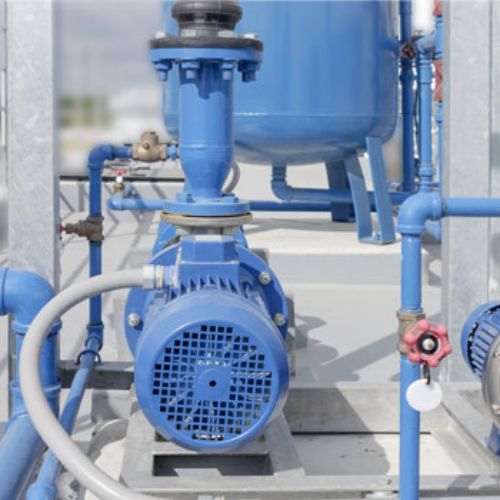

Hydraulic Systems
Hydraulic Systems

Direct hydraulic fluid flow directly to the machinery and equipment for high-accuracy control of movements and operations.

Aircraft Shut-Off Valves
Aircraft Shut-Off Valves

Control fuel or hydraulic fluid flow in the aircraft system by ensuring that safety, performance, and emergency shut-down capabilities are in place.

Types of Shut-Off Valves

Manual Shut-Off Valves

Manual Shut-Off Valves

Gate Valves

Gate valves form a vital part of plumbing systems and other plants and industries. These types of hydraulic valves have a wedge-shaped gate that regulates the movement of the fluid throughout the valve. Depending on the position of the gate (fully open or partially closed), the best path may be a straight-through way that alleviates pressure drop.

This type of configuration is suitable for high-pressure applications where the whole flow is needed. The only disadvantage of the gate valves lies in the speed of switching them on and off, as the gate requires being lifted or lowered to start or stop the flow. However, they are prized for their sturdiness and dependability in harsh weather conditions.

Ball Valves

Ball valves are quite popular due to their simplicity and remarkability. These are spherical disks, made of metal or plastic, that rotate within the valve body to start, stop, or regulate the flow of fluid. One of the significant merits of ball valves is their fast shut-off ability, which is achieved by a quarter-turn motion of the handle.

This is used in situations where fast control of flow is needed, for example, in emergencies or for on/off applications. Moreover, ball valves require minimal maintenance because of their relatively simple design and are thus used everywhere, even in different industries.

Globe Valves

Globe valves are the preferred type for their very precise flow control feature. They have a spherical body with an axial displacement disc that moves perpendicularly to the flowing direction in order to modulate the flow rate.

With this configuration, globe valves possess the ability to make small adjustments in the flow rates, making them suitable for applications where control with great accuracy is the key.

They are always used in systems where reduction or regulation of flow is needed, such as in HVAC systems, steam systems, and water plant treatment.

Even though globe valves do not provide the same quick shut-off as ball valves do, they can be replaced with their superior control ability in particular cases.

Automatic Shut-Off Valves

utomatic Shut-Off Valves

Solenoid Valves

The mechanics of solenoid valves are vital to the operation of automated systems since they provide quick action with high accuracy in fluid flow control. They work by employing a solenoid coil to drive a plunger or pilot valve, opening the passage of the fluid through the valve.

The solenoid valve plays quite an integral role in the operation of an appliance where quick shut-off or flow rate tailoring is needed.

They can be found in irrigation and process automation applications. They have really small dimensions, and their unfailing features and possibility of being operated from afar make them necessary to a large extent in industrial and commercial settings.

Motorized Ball Valves

With the use of an electric motor, a motorized ball valve opens or closes to achieve the proper adjustment of flow. The valves usually consist of a ballcast with a center hole and which rotates, allowing or stopping the flow. The ball valves that are motorized are used mostly because of the long life they have, their low maintenance requirements in both on/off applications.

They are extensively employed in HVAC systems, water treatment plants, industrial processes, and irrigation systems where precise fluid management ensures the desired system efficiency.

Check Valves

You can refer to as non-return valves or one-way valves as well, ensure the flow of fluid in one direction without allowing it to reverse within pipelines. Your fluid flows in single direction only, with automatic closing to hinder the reverse flow when the flow pattern is switched. Attack valves can be in different forms, such as swing checks, lift checks, and ball checks, depending on the specific solutions and results.

Check valves are standard instruments in piping systems, wastewater treatment plants, pumps, compressors, and hydraulic systems to examine system performance and ensure safety.

Butterfly Valves

Butterfly valve models typically exhibit a small-diameter circular disc or plate that toggles within the valve body to control the flow. They may have a portable and lean body that great for conditions where the volume is limited or the weight is paramount.

Butterfly valves are well-known for their fast operation and low pressure loss; hence, they are widely used in large-diameter pipelines and high-flow applications.

They are commonly applied in HVAC systems, water distribution networks, power plants, and chemical industries. Thanks to their simple construction and efficient operation, butterfly valves are go-to devices for flow control in many industries and products.

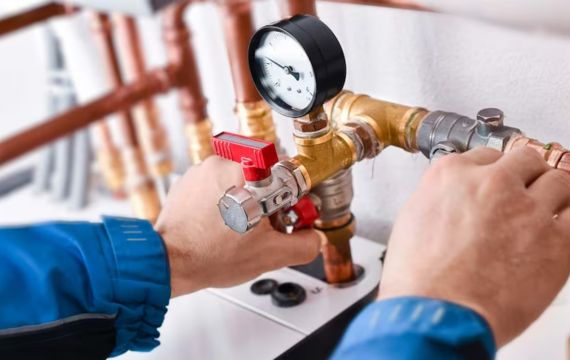

Installation and Maintenance of Shut-off Valves.

Installation and Maintenance of Shut-off Valves.

Proper Installation Procedures

Adhere to the manufacturer’s manual and industry standards when installing them, which should involve correct alignment, sealing, and torque specifications. Improper installation may produce leaks, weaken working conditions, and exacerbate wear, affecting operational safety and efficiency.

Regular Maintenance is needed to Guarantee Functionality

As a part of your schedule, you should implement routine maintenance to check for signs of erosion, corrosion, or breakage.

Attend wipers, lubrication, cleaning, and tightening tasks to jailroom valves in an active and reliable working condition. Routine maintenance not only avoids breakdowns, improves the performance of gateway components, but it also ensures that system operation is uninterrupted.

Troubleshooting Common Issues

Implement procedures for the detection and treatment of the most common valve problems, including leaks, blockades, and valve breakdowns. Use diagnostic facilities like pressure gauges or flow meters to fix problems in time.

Therefore, the appropriate corrective measures could be recommended. Correct troubleshooting practices reduce your downtime, avoid expensive repairs, and increase system performance in the long run.
